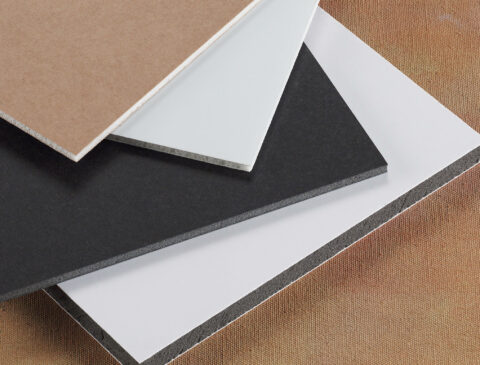

Distributor: Product Supply (Form Board)
Committed to sustainable foaming technology


Overview & Milestones
Established in March 2019, focusing on the development of high-performance & light-weight polymer foaming technology.
Up to now, 150 employees, over 20,000 square meters facilities, 60 million RMB of actual capital utilized; 9 polymer microcellular foam production lines with capacity of 2500 sheets/day (by May-2023).
Core equipment and key foaming technology are independently developed with own IP. 12 invention patents ; R&D center & analysis and testing center.

Unique advantage – IP (Process & Equipment)
•Various Patents(more than 20 patents), including PCT patent, applied across the foaming process, machinery and tooling.
•FTO (Freedom To Operate) assessment obtained from the law firm without infringement, against the patent existed in the key regions globally.

Quality Management System
Biz-Division
Consumer Products:Industrial Products:Special Foam
(High-Performance

Technical route map
Physical foaming mechanism

Sheets foaming process

Technical Route Map
Utilize clean supercritical microcellular foaming technology to realize the lightweight of high-performance elastomers, general-purpose polymers and special polymers.

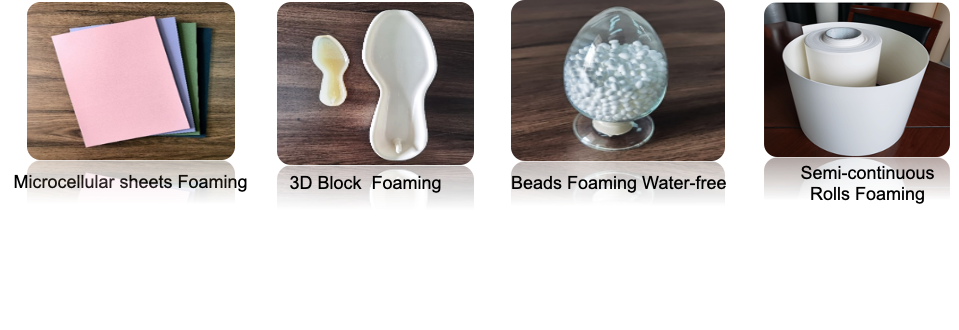

Endowing foams with excellent mechanical, thermal, electromagnetic, acoustic and optical properties, Zhongchu has foams of plates, beads, block foaming, foam rolls and so on.
The thermoplastic non-crosslinked products route covers all consumer products and general industrial products, in order to ensure the recyclability and recycling of materials.
Cross-linked foams are only available for products with demanding and complex application requirements.

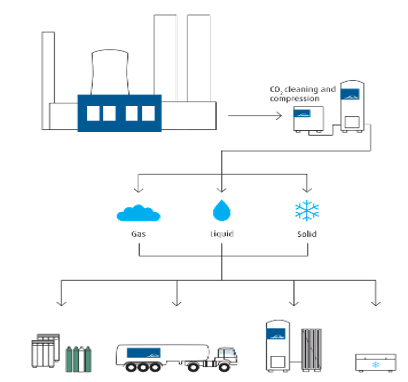

Carbon footprints – CO2 (N2)

•CO2 is captured, cleaned and compressed from waste products of chemicals production by Linde AG
•No extra CO2 is produced in Zhongchu foaming process .

Autoclave facility

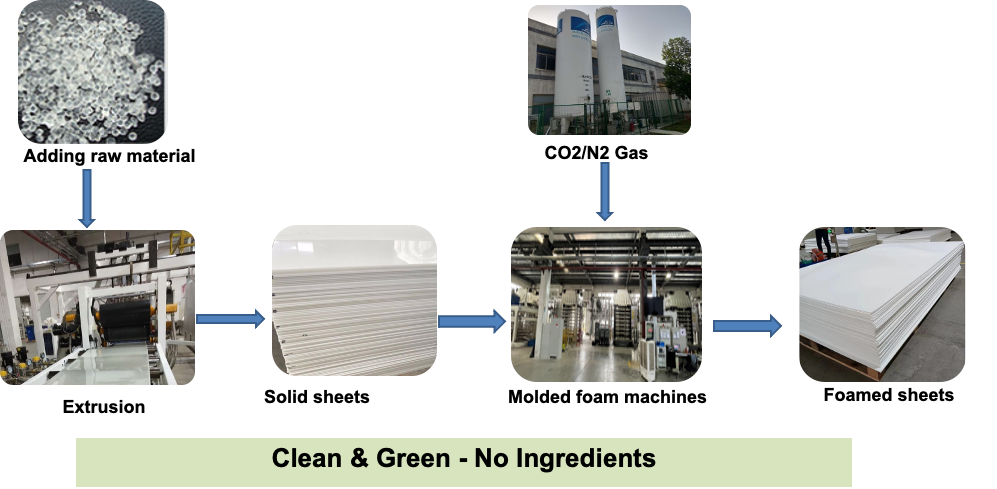

Manufacturing process – Foam Sheets

Manufacturing process – 3D block midsole
Raw material

Injection molding

Solid 3D block

High Pressure Autoclave

Midsole

No accessory ingredient or chemical foaming agent in whole process

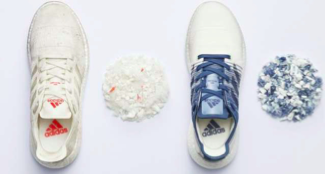

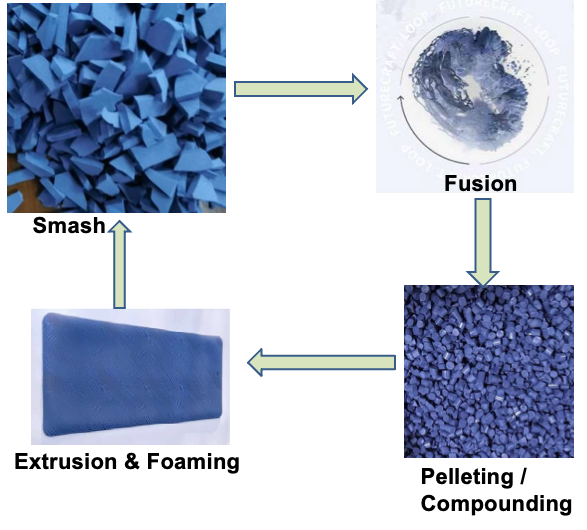

Recyclability


Applications

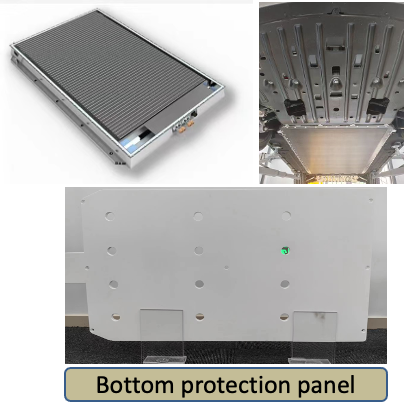

Industrial Products – EV Battery

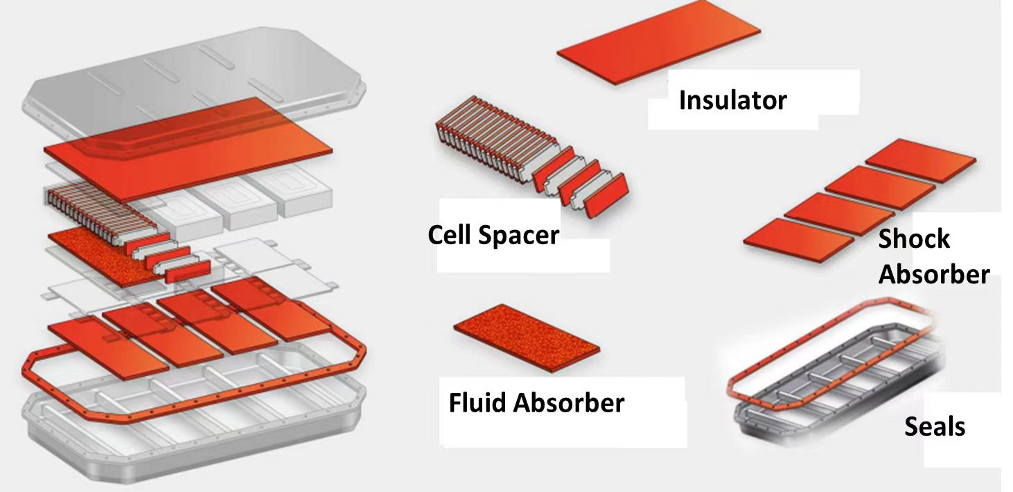

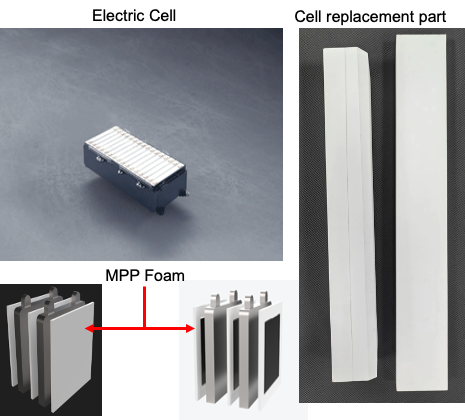

Battery Application

Consumer Products
Typical Foaming Polymers
M-TPU
Aliphatic TPU (A-TPU)
M-TPEE
M-PEBAX(Bio-Based)

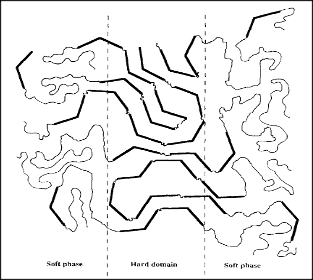

The micro-structural phase separation of hard segment and soft segment contributed to the high performance

Hard segment (HS) domains diffuse in a soft segment (SS) matrix.
Value-added Solution
Physical & Supercritical foaming
High energy return, lightweight and long-lasting cushioning.
No smell, no additional chemicals, foamed by N2/CO2.
No crosslinking enables recyclability
Bio-based version is also available, Content up to 44%
Low temperature resistant

MATERIAL | Raw Material Supplier | Tg Value |
PEBAX(Bio-Base) | Arkema | -35.8℃ |
TPU | BASF / HUNTSMAN | -49℃ |
TPEE | DUPONT | -50℃ |
Typical Product – M-Pebax Sheet
检验项目 Test Item | 测试方法 Test Method | 单位 Unit | M-PEBAX07 |
密度 Density | ISO 845:2006 | g/cm3 | 0.07±0.02 |
硬度 Hardness | SATRA TM 205-16 | Shore C | 35±4C |
拉伸 Tensile Strength | ISO 1798:2008 | MPa | 2 |
伸长率 Elongation at Break | ISO 1798:2008 | % | 150 |
撕裂强度(裤型) Method A Tear (Trouser Test) | ISO 8067:2008 | N/cm | 15 |
撕裂强度(直角) Method B Tear (Angle Test) | ISO 8067:2008 | N/cm | 60 |
落球回弹 Ball Resilience | ASTM D3574 | % | 80 |
压缩形变 Compression Set | ASTM D395 | % | 38 |
Typical Product – Aliphatic TPU(A-TPU) Sheet
检验项目 Test Item | 测试方法 Test Method | 单位 Unit | Aliphatic TPU |
密度 Density | ISO 845:2006 | g/cm3 | 0.07±0.02 |
硬度 Hardness | SATRA TM 205-16 | Shore C | 30±5C |
拉伸 Tensile Strength | ISO 1798:2008 | MPa | 2.27 |
伸长率 Elongation at Break | ISO 1798:2008 | % | 163.92 |
撕裂强度(裤型) Method A Tear Trouser Test | ISO 8067:2008 | N/cm | 18.27 |
撕裂强度(直角) Method B Tear Angle Test | ISO 8067:2008 | N/cm | 69.6 |
落球回弹 Ball Resilience | ASTM D3574 | % | 80 |
压缩形变 Compression Set | ASTM D395 | % | 24 |
Consumer products

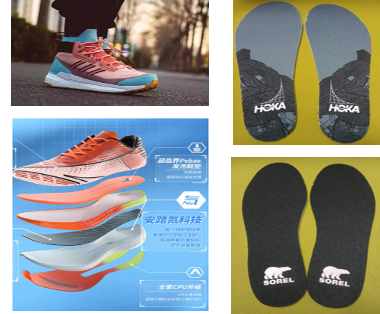

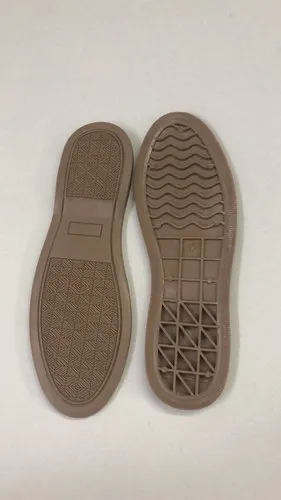

Footwear

Sports


High Performance Foam
Insulation and Seals
Applications
•Insulation Tubes
•Window Surrounds/Seals

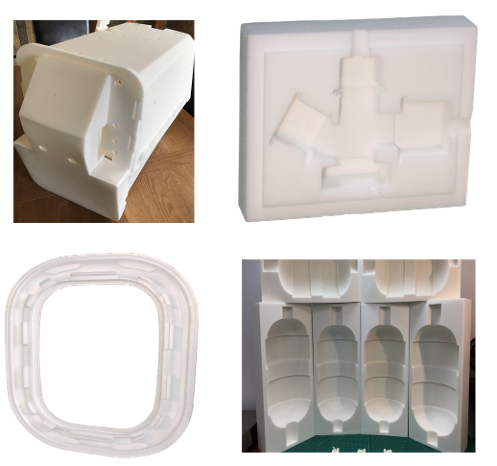

•Equipment Packaging
Benefits
•Flammability
•Lightweight
•Heat Insulation
Low Coefficient of Thermal conductivity – Less material needed-
•Fabrication Simplification
Engineered fixing method removes glue

High Performance Foam
Insulation and Seals
Applications
•Insulation Tubes
•Window Surrounds/Seals
•Equipment Packaging
Benefits
•Flammability
•Lightweight
•Heat Insulation
Low Coefficient of Thermal conductivity – Less material needed-
•Fabrication Simplification
Engineered fixing method removes glue

Customers & Partners
